Custom floor plan concept design, design drawings, PDF format.

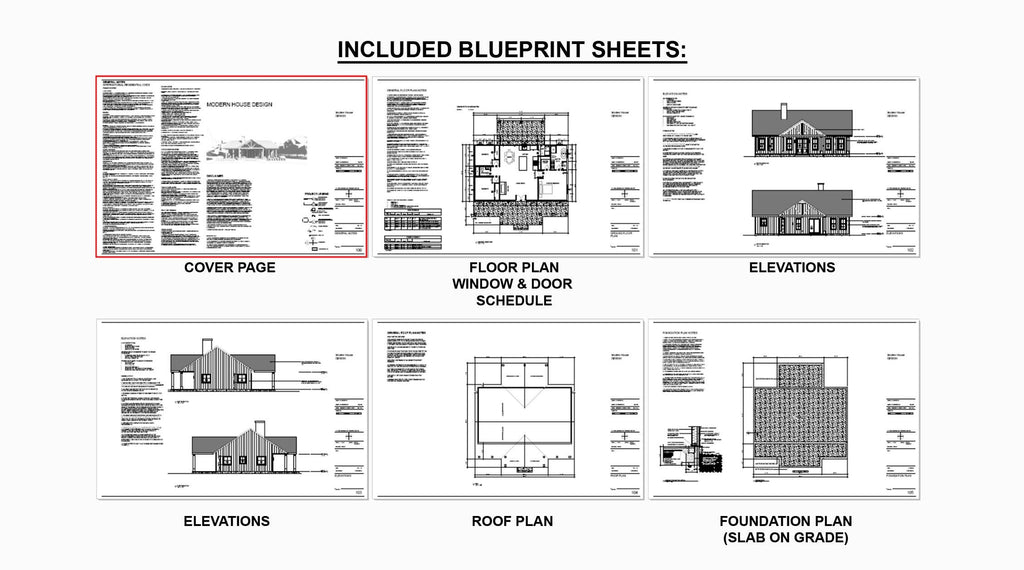

Concept Design Plans include:
Floor plans with dimensions
Door and Window Schedule
Elevations all four sides
Roof Plan
Foundation Plan

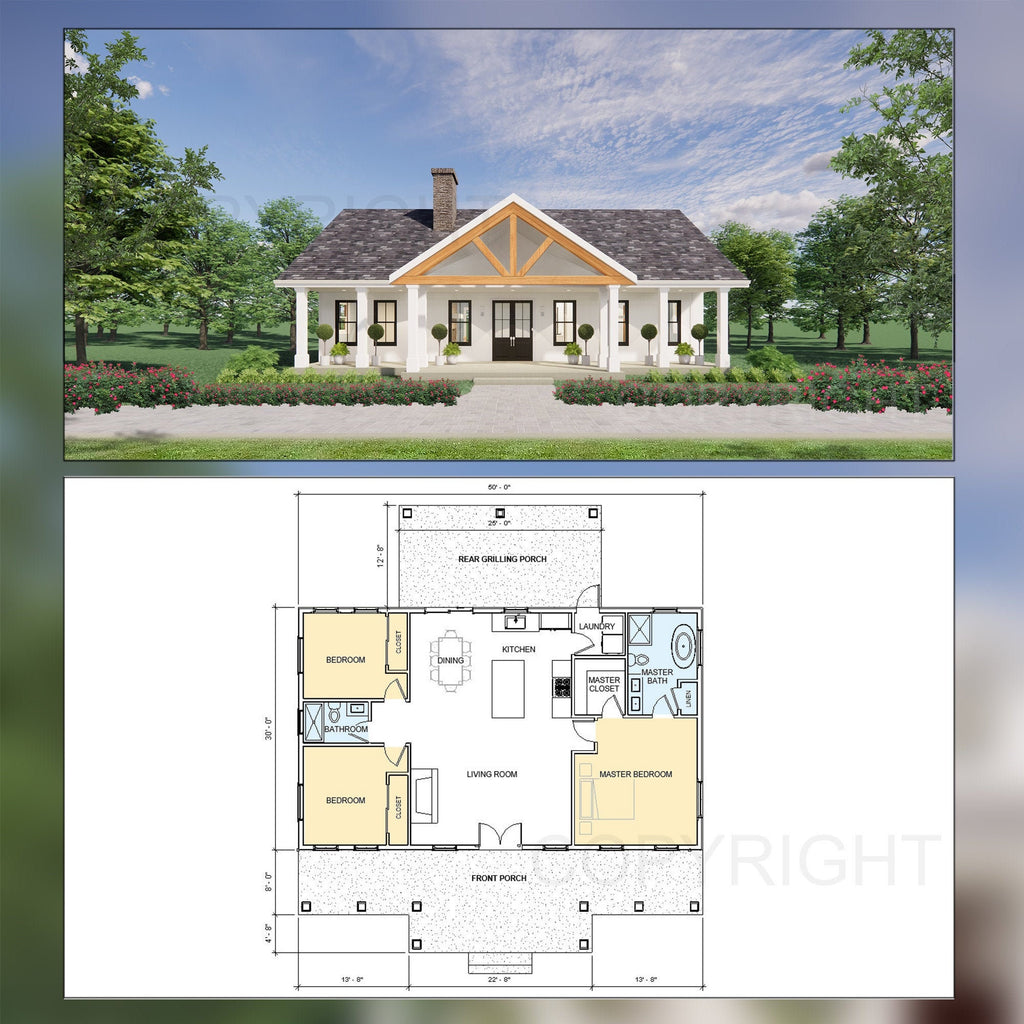

Square footage information:
Heated living gross area: +/- 1,500 SF
Master Bedroom: +/- 16' x 15'
Bedroom 2: +/- 13' x 12'
Bedroom 3: +/- 13' x 11'
Living + kitchen: +/- 20' x 30'
Including the roof overhangs the overall house dimension is +/-53' wide x +/-55'-4"
Plan is delivered as an printable digital PDF downloads
No physical printed plans are included with this listing.
-----------------------------------------------------------------------------
Please message me if you need a custom design or modification / modifying of stock house plans.
Plans are for information purposes only. No engineering or architectural stamps are included. You should consult with a qualified licensed builder, contractor or architect who is familiar with your local building codes before beginning any construction project.
Due to variation in different States and local building departments, these plans are not intended for immediate permitting, but can be adjusted by your builder or designer if needed. Some states may require additional information and/or local engineering, check with local requirements.
Please do not redistribute PDF file. You may print out the plans as many times as you want.
The plans offered here are for personal use only.
