Spacious Sunset Modern A Frame 26' x 40' / Vacation Cabin / A-Frame House Design Concept Plans Blueprint

Build your own classic weekend getaway cabin or Airbnb vacation rental. Thoughtful efficient modern design. This Tiny House A-Frame Plan features a large living room with soaring A-frame exposed ceiling. Also on the ground floor are two bedrooms, full size bathroom with shower, kitchen and laundry room. The second floor has a loft space, bedroom and bathroom.

Dimensions:
26' (width) x 40' (depth) - house portion (not including porches and deck)
Front porch 4' deep and back porches (living roomf side) 16' deep.
Overall dimension including deck and porches is 26' wide x 60' deep.
Bedrooms: +/- 12' x 7'
The upper bedroom in the loft: +/- 16' x 9'
Kitchen: +/- 12'x15'
Living Room: +/- 19'-6" x 15'-6"
Bathroom: +/- 8'x8'
Height from Level 1 to top of roof ridge is +/- 22' - 8"

Estimated square footage: Ground floor: +/- 1,040 sq ft, Loft: +/- 370 sq ft

Plan includes:

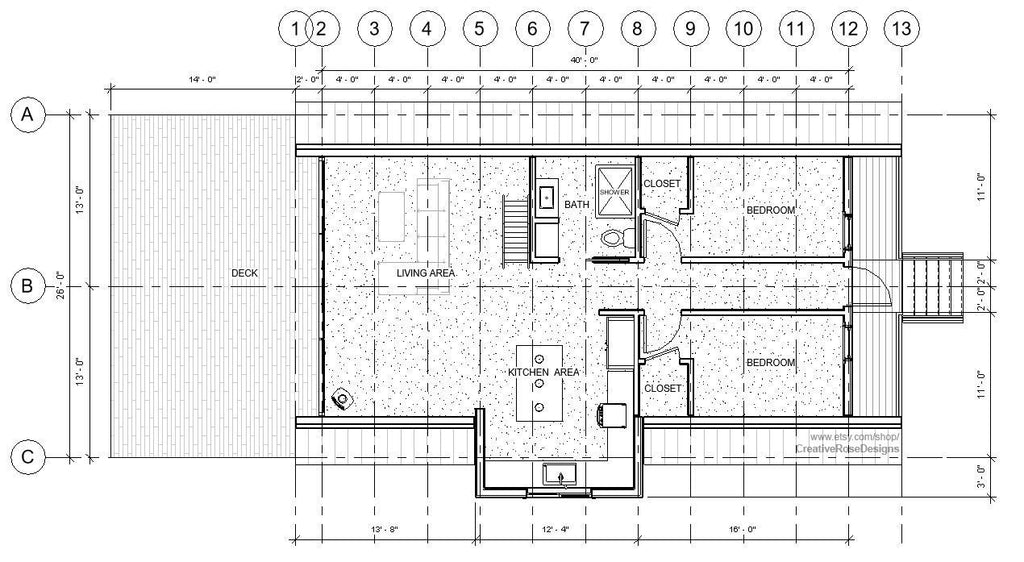

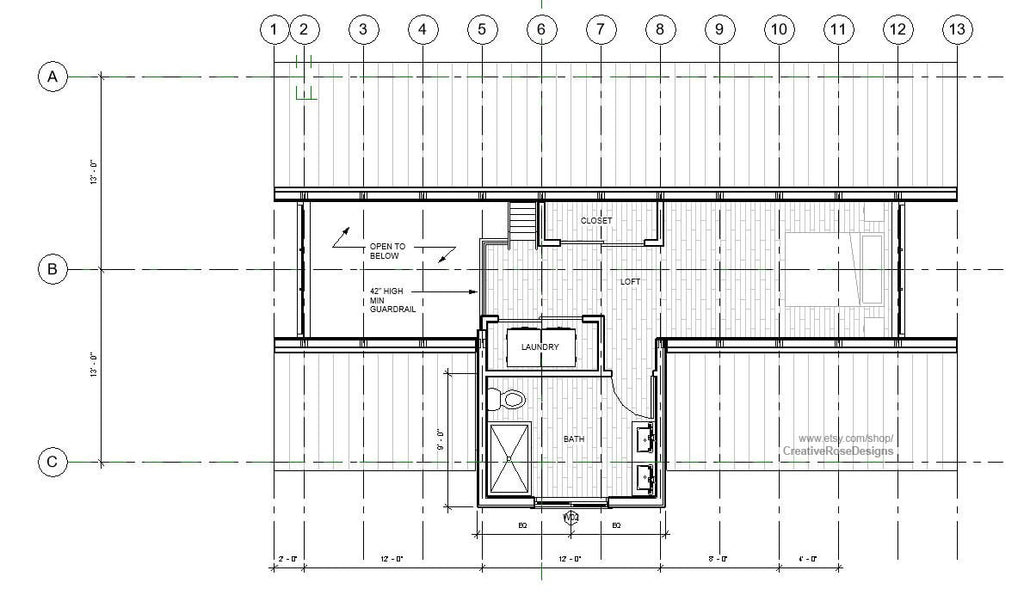

Dimensioned Floor plans
Elevations
Wall Sections
Elevations
Details
Electrical lighting plan

Print size: 17" X 11”

Plan is delivered as an immediate printable digital PDF downloads
No physical printed plans are included with this listing.

Please message me if you need a custom design or modification / modifying of stock house plans.

Plans are for information purposes only. No engineering or architectural stamps are included. You should consult with a qualified licensed builder, contractor or architect who is familiar with your local building codes before beginning any construction project.

Please note engineering is not included, you'll need a local engineer to review the design drawings and engineer the design to meet your local site and building requirements. This is typical/standard in my experience for online drawings but wanted to point this out.

Due to variation in different States and local building departments, these plans are not intended for immediate permitting, but can be adjusted by your builder or designer if needed. Some states may require additional information and/or local engineering, check with local requirements.

Please do not redistribute PDF file. No commercial use or distribution allowed. You may print out the plans as many times as you want for one personal project.
